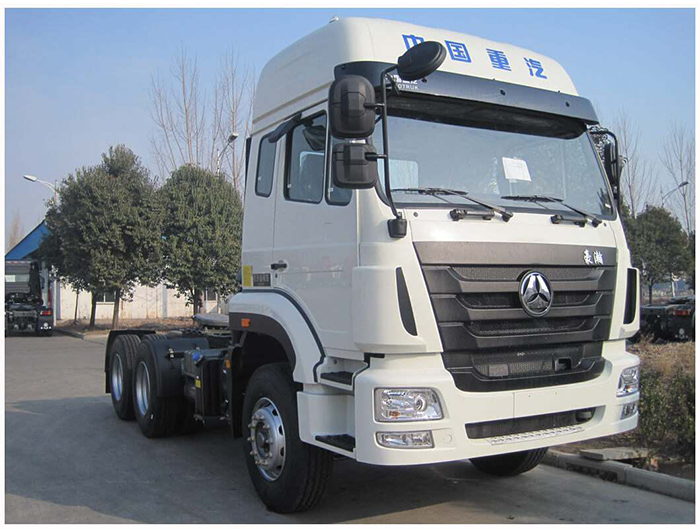

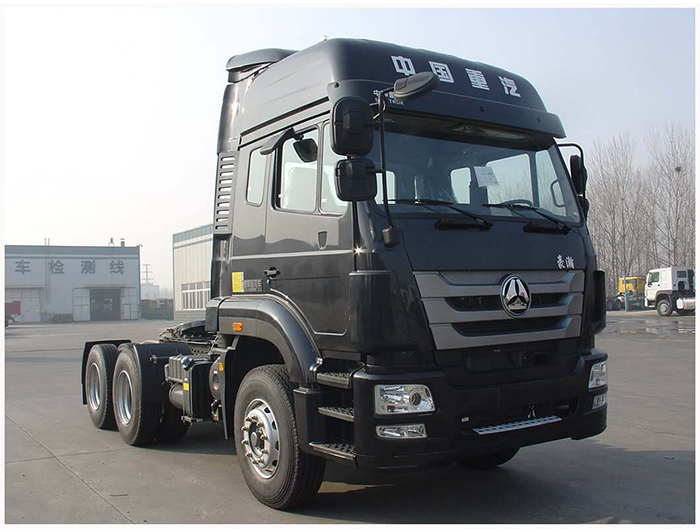

HOWO NX 6X4 Tractor Truck HOWO NX 6X4 Tractor Truck HOWO NX 6X4 Tractor Truck
  • Make an Offer
  • Schedule Test Drive
  • Email to a Friend
  • Financial Form

Driving Type:6x4 / 10 Wheels / 3 Axles

Cabin Type:Double Berth

Horse Power:380HP / 400HP

Transmission:HW19710, 10F & 2R

Chassis Model ZZ4257V344JB1
Driving Type LHD (RHD is optional)
Cabin H77L Cab, two seats, with two sleeper, with A/C; Equipped with Benz NG85 cab,Half round type aviation instrument desk with a large LCD display meter and relay control system;Hydraulically damped adjustable driver’s seat and rigid adjustable co-drivers seat with safety belts;Single berth with 4-point support fully floating suspension and shock absorber with transverse stabilizer;Electric glass elevator The manual door lock;Large, truck type convex 2 arm wind screen wiper system with 3 speeds;FM/AM/SW, 4 band radio/cassette recorder;Adjustable steering wheel.
Engine Make: Weichai
Diesel 4-stroke direct injection diesel engine
Engine model: WP12.400E201, Euro 2, 400HP
6-cylinder in-line with water cooling, turbo-charging and intercooling
Displacement: 11.596 L
Transmission HW19710, 10F & 2R
Ratio:14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
Steering ZF power steering, modol ZF8118, hydraulic steering with power assitance
Front Axle VGD95,1x9500 KGS

Steering with doubleT-cross section beam

Rear Axle MCX16ZG, 2x16000 KGS
Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles.
Ratio:4.803
Propeller Shaft Double universal joint propeller shaft with gear-shaped coupling flange
Chassis Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members
Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer
Brake Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake
Electrics Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Tyres 315/80R22.5, one spare tyre
Fuel Tank 400L
Fifth Wheel 90#
Overall Dimension 6850*2496*3750mm

Driving Type:6x4 / 10 Wheels / 3 Axles

Cabin Type:Double Berth

Horse Power:380HP / 400HP

Transmission:HW19710, 10F & 2R
