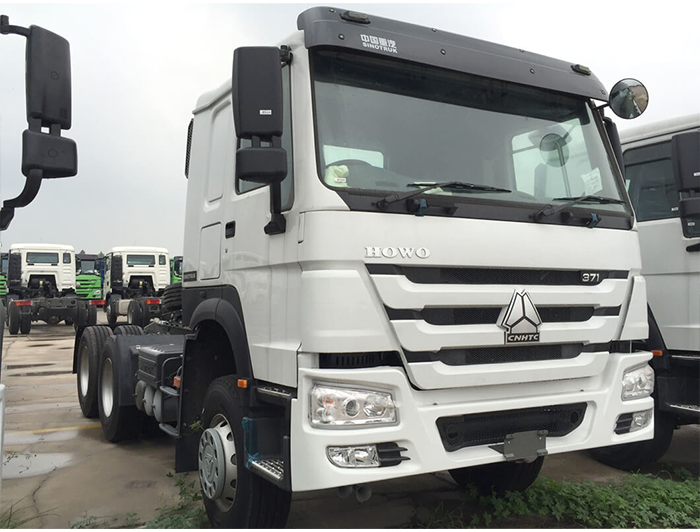

HOWO Trailer Truck

Make an Offer

Make an Offer

First Name*

Last Name*

Email*

Phone*

Message

Request Price*

You agree with the storage and handling of your personal and contact data by this website.
Schedule Test Drive

Schedule Test Drive

First Name*

Last Name*

Email*

Mobile*

Address

State

Zip

Preferred Contact
Email

Phone

Test Drive?
Yes

No

Date*

Time*

You agree with the storage and handling of your personal and contact data by this website.
Email to a Friend

Email to a Friend

Friend's Name*

Friend's Email*

Your Name*

Your Email*

Message
Financial Form

Financial Form

First Name*

Middle Initial

Last Name*

Street Address*

City*

State*

Zip*

Preferred Email Address*

Daytime Phone Number*

Mobile*

Date of Birth*

Social Security Number (SSN)*

Employer Name*

Employer Phone*

Job Title*

Living Arrangements*

Monthly Rent/Mortgage Payment*

Length of Time at Current Address*

Length of Employment*

Annual Income*

Joint Application

Applicant Additional Income Information

Complete "Other Income" and "Source of Other Income" only if you want this income considered for repayment. Enter monthly amount. Alimony, child support or separate maintenance income need not be revealed if you do not wish to have it considered as a basis for repaying this obligation.

Other Income Amount (Monthly)

Other Income (Source)

Please include any additional information or options that you would like

Joint Applicant Personal Information

First Name*

Middle Initial

Last Name*

Relationship to Applicant*

Street Address*

City*

State*

Zip*

Preferred Email Address*

Daytime Phone Number*

Mobile*

Date of Birth*

Social Security Number (SSN)*

Employer Name*

Employer Phone*

Job Title*

Living Arrangements*

Monthly Rent/Mortgage Payment*

Length of Time at Current Address*

Length of Employment*

Annual Income*

Joint Applicant Additional Income Information

Complete "Other Income" and "Source of Other Income" only if you want this income considered for repayment. Enter monthly amount. Alimony, child support or separate maintenance income need not be revealed if you do not wish to have it considered as a basis for repaying this obligation.

Other Income Amount (Monthly)

Other Income (Source)

Please include any additional information or options that you would like

By clicking on "Submit Credit Application", I acknowledge and declare that I have read and agree with the Application Disclosure above. I certify that I have provided complete and true information in this application.

You agree with the storage and handling of your personal and contact data by this website.

Driving Type:6x4 / 10 Wheels / 3 Axles

Cabin Type:Single Berth

Horse Power:380HP / 400HP / 430HP

Transmission:HW19710, 10F & 2R

Chassis Model	ZZ4257V3247B1
Driving Type	LHD (RHD is optional)
Cabin	HW76, with one sleeper and two seats, double arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with four piont support floating suspension+shock absorber.
Engine	Make: Weichai Diesel 4-stroke direct injection diesel engine Engine model: WP12.400E201, Euro 2, 400 HP 6-cylinder in-line with water cooling, turbo-charging and intercooling Displacement: 11.596 L
Transmission	HW19710, 10F & 2R Ratio:14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
Steering	ZF power steering, modol ZF8118, hydraulic steering with power assitance;
Front Axle	VGD95, 1x9500 KGS Steering with doubleT-cross section beam
Rear Axle	HC16, 2x16000 KGS Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles. Ratio:4.42
Propeller Shaft	Double universal joint propeller shaft with gear-shaped coupling flange
Chassis	Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer
Brake	Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake
Electrics	Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Tyres	315/80R22.5, one spare tyre
Fuel Tank	400L
Fifth Wheel	90#
Overall Dimension	690025503450mm

Driving Type:6x4 / 10 Wheels / 3 Axles

Cabin Type:Single Berth

Horse Power:380HP / 400HP / 430HP

Transmission:HW19710, 10F & 2R
